Manufacturer 13000lm 100W High Quality LED Street Lamp

न्यूनतम आदेश मात्रा :	50	मूल्य :	Negotiated
पैकेजिंग विवरण :	सामान्य गत्ते का डिब्बा या इच्छित	प्रसव के समय :	8-15 कार्य दिवस
भुगतान शर्तें :	टी/टी, वेस्टर्न यूनियन, मनीग्राम	आपूर्ति की क्षमता :	10000PCS/माह

उत्पत्ति के प्लेस:	शेनझेन, चीन	ब्रांड नाम:	SUNRISE
प्रमाणन:	CE ROHS	मॉडल संख्या:	SU-LDC100W

विस्तार जानकारी
प्रोडक्ट का नाम:	100W एलईडी स्ट्रीट लाइट	पाइप का व्यास:	60 मिमी
बीम कोण:	160*75°	सामग्री:	डाइस-कास्टिंग एल्यूमीनियम
आईपी रेटिंग:	IP65 वॉटरप्रूफ	गारंटी:	3 वर्ष
चिप:	ओसराम एलईडी 2835 एसएमडी	विशेषता:	संक्षारण-सबूत, दबाव-सबूत

उत्पाद विवरण

Characteristics of LED Street Light:

1. SUPER BRIGHT LED SOURCE.

- Street light using super bright 3030 SMD LEDs as light source to meet high light luminous efficiency 110-120lm/W or 120-130lm/w and keep long working hours.

2. OPTIOCAL LENS.

- The beam angle is 160*75°.

- Adopts high quality and large angle optical PC lens with high light transmission and against yellowing and corrosion proof.

3. DIE-CASTING ALUMINUM, BETTER HEAT SINKING

- High density and thick durable aluminum , faster heat sinking, treated with graphene. coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.

- This outdoor light also comes with a thickened metal bracket and rubber cable, easy installation, more stable.

4. CONSTANT CURRENT DRIVER SOLUTION.

- Street light using high quality driver solution to keep good performance and high efficiency, stable working and quality guaranteed.

5. FREE REPLACEMENT, EASY INSTALLATION.

- Street lights offer warranty 3 or 5 years. During this period, any product problem can be replaced freely. The lamp is very easy installation. If required, arm pole and accessories can be both provided.

6. WIDE APPLICATIONS.

- The street light could be used for road lighting such as garden, plaza, playground, highway, city etc.

Product Descriptions of LED Street Light:

Product Name	Outdoor LED Street Lighting
Product Model	SU-LDC100W
Rated Power (W)	100W

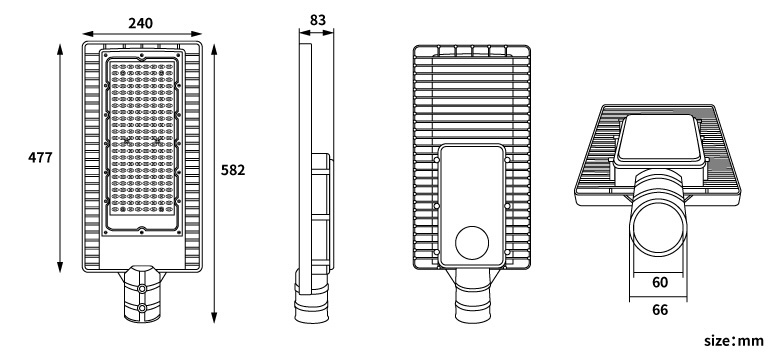

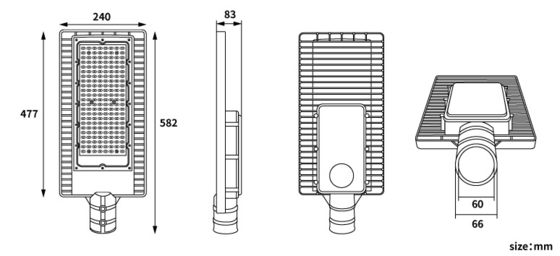

Dimension (mm)	48421183mm
Input Voltage	AC220-240V / AC100-277V, 50/60Hz
Driver Mode	Constant current driver (Brand driver)
Light Source	Lumileds SMD3030 Leds
Color	3000K-3200K Warm White 4000K-4500K Nautral White 6000K-6500K White Cold
Housing Material	Die-casting Aluminum
Body Color	Grey
Pipe Diameter	D60mm
Cover	PC cover
Beam Angle	140*75°
CRI	>70
PF	>0.95
Surge Protection	L/N-PE 15KV, L-N 6KV
Shockproof Level	IK08
Cable Length	3*0.75mm2 H05RN-F 500mm
SDCM	≤15%
THD	≤5
IP Rating	IP66
Work Temperature	-30 ~ +50C°
Life Span	50,000 Hours
Warranty	5 Years
